Modern lines, cutting edge technology, the ability to adapt to any need.

These are the characteristics of Urban, the latest creation from Wega, inspired by our designers and now a reality thanks to the efforts of our R&D team. Professionals who have skilfully interpreted the demands of a constantly evolving market, based on an ongoing dialogue with selected baristas from across the world.

The result is a machine with a distinctive, “urban” story inspired by urban design. In keeping with the movement’s philosophy, Urban aspires to a systematic, multidisciplinary approach to design in which attention to aesthetics does not detract from functionality and sustainability. Urban not only adapts to its setting, it enhances it and makes it more efficient thanks to its own unique style.

ELECTRONIC ENERGY-SAVING COFFEE MACHINE WITH BOILER AND INDEPENDENT GROUPS.
– 5’’ capacitive screen with “mobile like”interface.

– SKIN, slide show and start logo customization. – Choice of SKINS from Cloud library.
– A personalized menu, allows you to select

command signals from one to six selections. – Instant upload of images via a USB port.
– The possibility to memorize the specific

extraction settings, of a particular coffee blend or single origin, in order to be able to re-access the memorized parameters, at a later date.

–Each group is completely independent: whereby it is possible to memorize preferences and combinations, for simultaneous selection by different operators.

AVAILABLE COLOURS

TOTAL WHITE or TOTAL BLACK

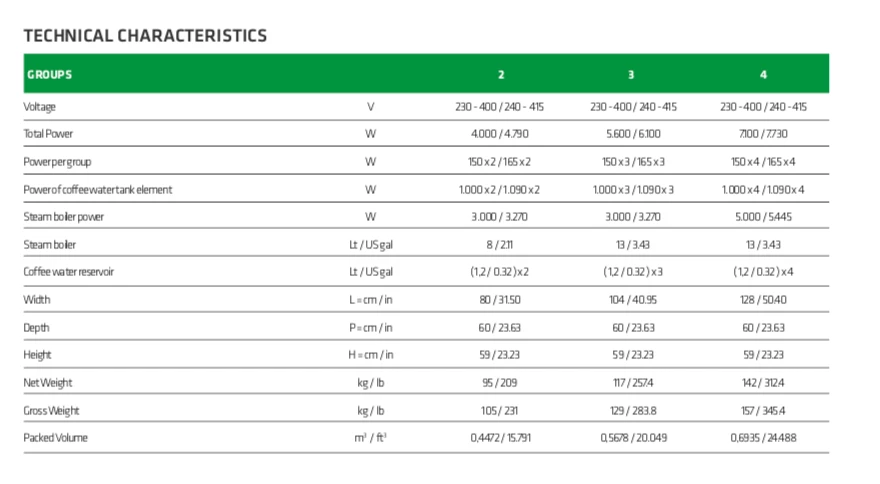

TECHNICAL CHARACTERISTICS

– Possibility to change the coffee drop height (spout tip to lower grid) from 122mm to 82mm any time, thanks to a robust stainless steel pull out grid.

– Predictive ECO mode that analyzes data from all cycles made.

– ON, STAND BY and OFF selected by the device based on the best energy strategy. All this can also be set manually through the intuitive touch display!

–Pre-setting of optional functions, for managing the Wi-Fi package, allowing control in remote mode (from laptop, tablet, and smartphone) of all machine programming and functions.

Technology WPB (Wega Power Boost)
Technology WPR (Wega Power Regulation)
Technology WPS (Wega Power Steam)
Technology LEC, MBT, SLS e HSB

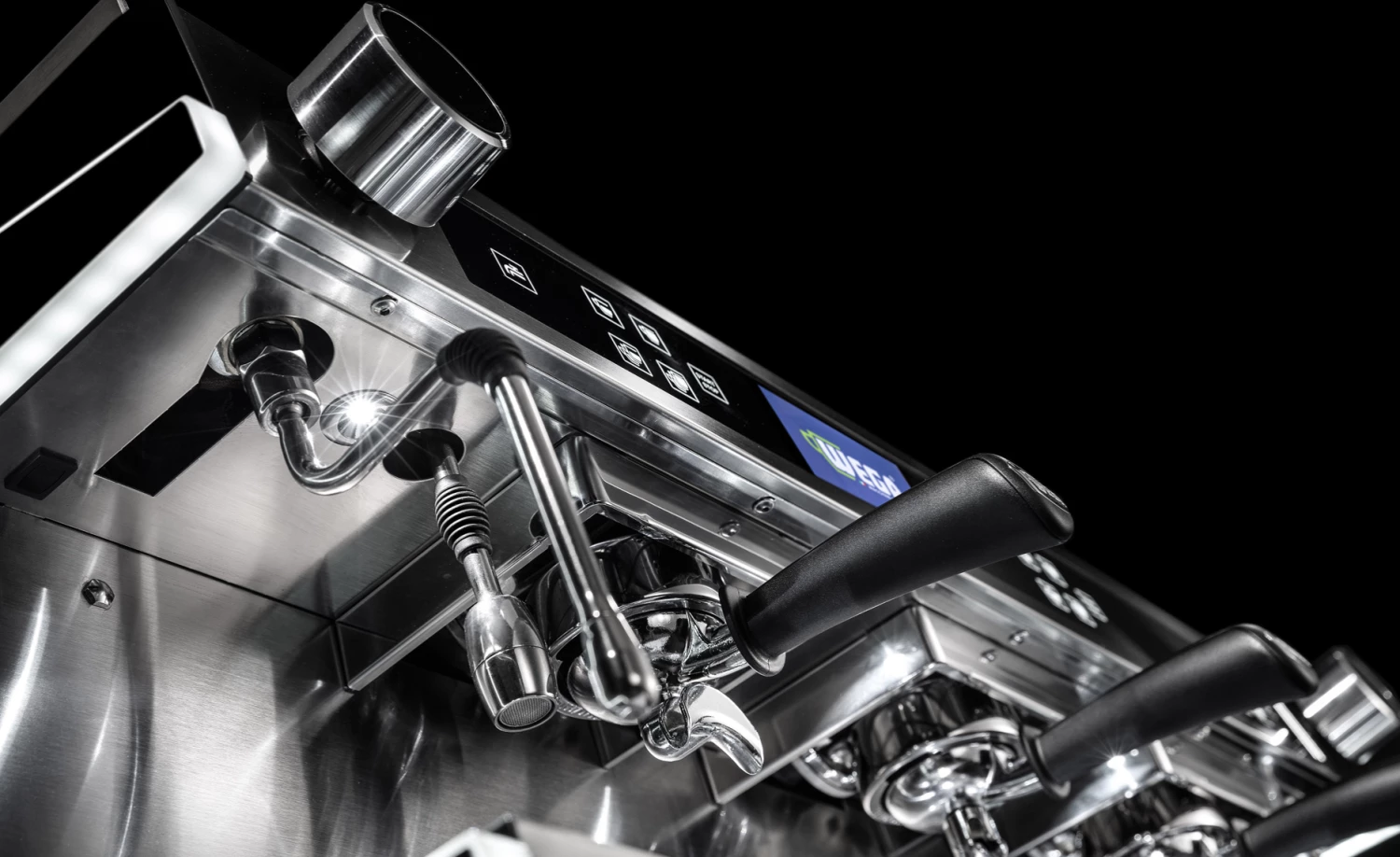

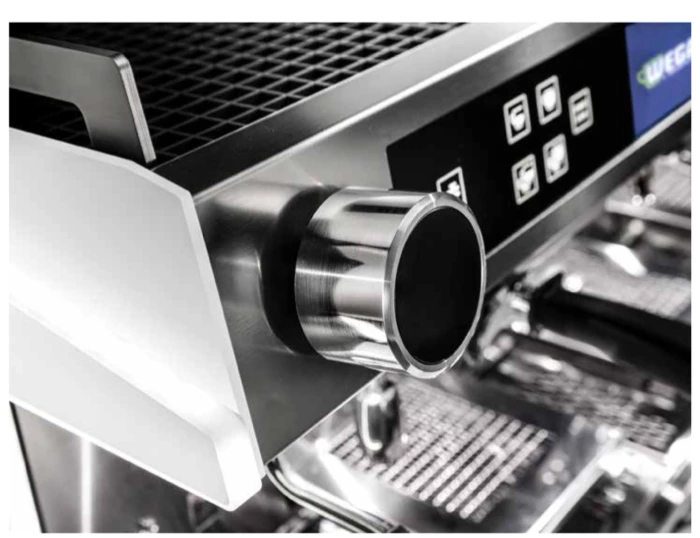

Steam tap with dedicated knob with 90° rotation
Separated hydraulic circuit
Stainless steel pull-out grid to raised groupheads from 82mm to 122mm

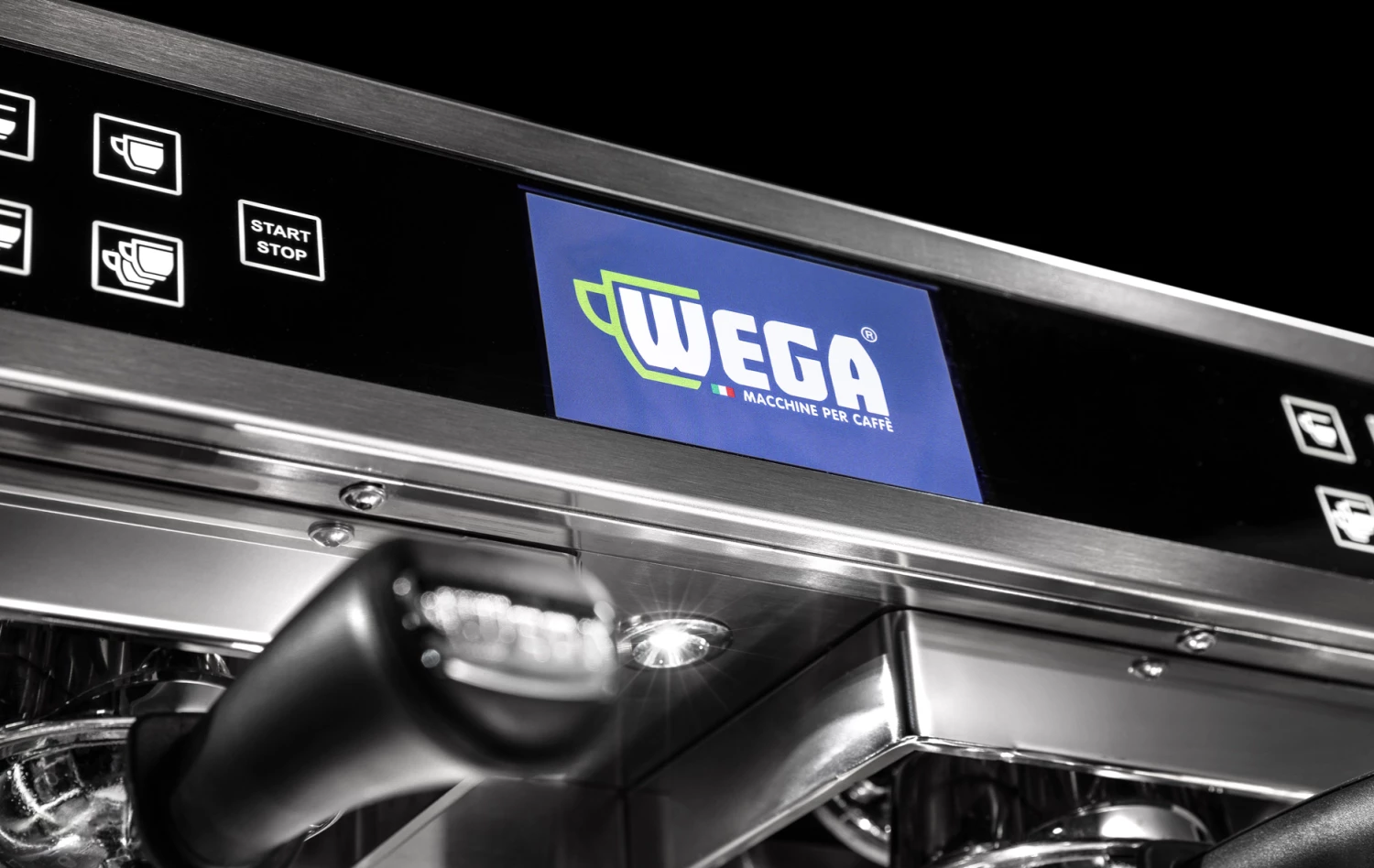

5” interactive capacitive touchscreen display
Shot counter
Easy-to-use tutorials

Features:-

2 brew group with single and double spout portafilts and blank cleaning plate. Brew groups have indepedant water boilers which can have the coffee water termperature precisely set to the optimum for your espresso blend.
Raised brew groups, 122mm clearance from drip tray. Slide forward cup trays for standard size cups
2 Steel steam arms for foaming milk for milk based drinks
1 Hot water outlet for teas or Americano Top up
Removable drip tray
Cup warmer on top of the machine – store cups and warm them.
Dual gauge manometer – shows brew pressure and boiler pressure
Automatic boiler filling and water level control
Chassis of electroplated stainless steel, full box chassis
Automatic Version – Volumetric dosing of cup portions, hot water electronically dosed at the push of a button. Digital display with boiler temperature, time and audit facilities
Automatic version has option to upgrade to one autosteamer arm, can be set to foam a jug of milk for you
Includes delivery to site and connection to prepared water and power supplies if engineer install is selected as an option.
Includes a 10 Litre CTU
Requires hard wiring to a cooker on switch
Includes twelve months parts and labour Warranty, warranty excludes limescale damage and misuse.

	Height	Width	Depth	Boiler Size	Power
Concept 2 group	590mm	800mm	600mm	8ltr	4400 watt

Wega Concept Colour Brochure
Installation specification sheet for espresso machines

ELECTRONIC ENERGY-SAVING COFFEE MACHINE WITH BOILER AND INDEPENDENT GROUPS.
– 5’’ capacitive screen with “mobile like” interface.
– SKIN, slide show and start logo customization. – Choice of SKINS from Cloud library.
– A personalized menu, allows you to select command signals from one to six selections. – Instant upload of images via a USB port.
– The possibility to memorize the speci c extraction settings, of a particular co ee blend or single origin, in order to be able to re-access the memorized parameters, at a later date. –Each group is completely independent: whereby it is possible to memorize preferences and combinations, for simultaneous selection by di erent operators. AVAILABLE COLOURS TOTAL WHITE | TOTAL BLACK

– Possibility to change the co ee drop height (spout tip to lower grid) from 122mm to 82mm any time, thanks to a robust stainless steel pull out grid. – Predictive ECO mode that analyzes data from all cycles made. – ON, STAND BY and OFF selected by the device based on the best energy strategy. All this can also be set manually through the intuitive touch display! –Pre-setting of optional functions, for managing the Wi-Fi package, allowing control in remote mode (from laptop, tablet, and smartphone) of all machine programming and functions.

Vertical flanged boiler for each brewing group, in copper and brass, with a 1,2 litre capacity, and 1150W heating element –

Safety features on the services boiler: – The pressure switch disengages the power supply to the heating element if the pressure in the boiler reaches 1,5 bars – Should the pressure switch malfunction, the boiler safety valve opens when the pressure in the boiler reaches 2,0 bars – A temperature sensor, disconnects the heating element when it reaches 130 degrees celcius, and gives a visual alarm signal on the display –

A secondary safety sensor positioned internally in the boiler, disconnects the heating element should a temperature of 169degrees celcius be reached – A function on the Central Processing Unit, disconnects the heating element should it work uninterruptedly at 100% of its capacity for longer than 60 seconds – Safety features on the individual coffee brewing boilers: – A temperature sensor, disconnects the heating element when it reaches 130 degrees celcius, and gives a visual alarm signal on the display – A secondary safety sensor, disconnects the heating element should a temperature of 150 degrees celcius be reached – The SNCR valve opens when the pressure in the hydraulic circuit surpasses 12,5 bars – A function on the Central Processing Unit, disconnects the heating element should it work uninterruptedly at 100% of its capacity for longer than 45 seconds. – USB port for the uploading and downloading of settings and parameters, in addition to software upgrades – Hot water for tea, obtained by mixing fresh water from the incoming line, and steam from the services boiler – Electronically controlled cup warmer – Temperatures in the individual coffee brewing boilers, the group heads, and the services boiler, electronically controlled with a maximum fluctuation of 0,5 degrees celcius either way – Pump operating water pressure reading, together with incoming water pressure visible on the display – Ambient humidity reading obtained by means of a hygrometer, and visible on the display – Incoming water pressure reading, visible on the display.

This machine is ordered and shipped from the manufacturer, please enquire regarding shipping times. Includes manufacturers 12 months parts and labour Warranty.
